Protocols Supported by SunGuide^®

For information on the process to integrate new devices, systems, and functionalities with SunGuide Software, please reference the SunGuide Software Device Integration Process document, which can be found here. A companion infographic, the SunGuide Software Device Integration Process Flowchart, can be found here.

Please consult these documents when seeking to interface new elements with SunGuide Software.

Dynamic Message Signs (DMS) NTCIP 1203, FDOT MIB (Sep 2001) NTCIP 1203 v02.39b (Nov 2010) Mark IV - I95: Document Number A316111-102 REV. A8 (June 26, 2001) Mark IV - Turnpike: Document Number A316111-145 Rev.A2 (Sept 26, 2000) SunGuide Trailblazer - Kimley-Horn, 2000   Closed Circuit Television (CCTV Control) NTCIP 1205 v01.08 Amendment 1 v01.08 (August 2004) American Dynamics SD Ultra VII camera firmware version 2.03, dated January 24, 2006 American Dynamics SD Ultra 8 camera firmware version 1.09, FPGA version 2006/10/31 15:18 Cohu iDome/iView/iView2/LCU Communications Protocol Rev 6.9 (Apr 2013) ONVIF version 2.3, Profile S version 1.0 (May 2013)   Connected Vehicles SAE J2735-2016-03   Video Switching:  Internet Protocol (IP) Video VBrick 4200/5200 Teleste IPE301 and IPD301, MPC-E1, MPC-D2, EASI–MPC-D (1, 2, and 4 channel), EASI–MPX-D (8 channel), EASI–MPC-E (1, 2, and 4 channel) Coretec VCX2400D/VCX2400E iMpath i1000/i4100 Cornet Technology iVDO Streamer 2/4D / iVDO Streamer 2/4E   Video Wall Barco/Argus Apollo, API ver 1.8 Jupiter Systems Control Point Server ver 2.1.0.117 Activu Visualization & Collaboration Software for Command and Control ver 5.0 Jupiter Canvas Mimic API version 1.0.1 (March 2014) DataPath Video Wall (WallControl 10 API)   Safety Barrier FDOT Safety Barrier Device Protocol   Mobile Device Applications for Automatic Vehicle Location / Road Ranger (AVL/RR) FDOT SmartPhone Application for Road Rangers FDOT Road Ranger Mobile Application for tablet computers Gannett Fleming’s LOCATE IM   Truck Parking IPSens (Aug 2017) SNAPS v2.12 Civic Smart   Media Control Panel American Dynamics AD2088 8000-1811-01, Rev C (2002) American Dynamics ADCC0200/ADCC0300 (2002)   Traffic Signal ATMS.now rev1.1 TMDD v3

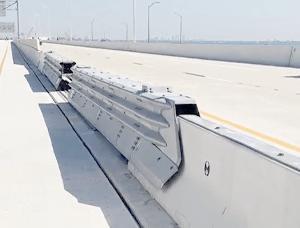

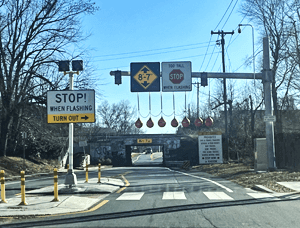

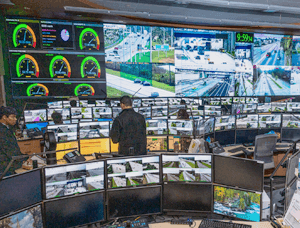

Traffic Detection (Point-based Detectors) BiTrans B238-I4 EIS RTMS, Issue 2 (April 2003) IIS G4 Wavetronix RTMS: SS105 SmartSensor Data Protocol V2.02 Canoga Microloops, TM-2003-8 (June 2003) Wavetronix HD: Z1 SmartSensor Data Protocol Peek Traffic NTCIP 1209v2 Traffic Detection (Probe-based Detectors - Automatic Vehicle Identification [AVI]) SIRIT Flex SIRIT Identity Flex Title 21 SIRIT5000FSD (Revision E 2003) TTI AWAM TransCore Allegro IT2020 TrafficCast BlueTOAD Bluetooth Readers BlueMAC (Oct 2014)   Traffic Detection (Probe-based Detectors - License Plate Reader [LPR]) Inex Zamir Zap (2008) PIPS   Highway Advisory Radio (HAR) Vaisala DR2000   Ramp Meters FDOT Ramp Metering Firmware V1 NTCIP 1207v2   Road Weather Information System (RWIS) NTCIP 1204 v01.13 (Nov 2001) NTCIP 1204 v02.24 (May 2008)  NTCIP 1204 v03.08 (Oct 2009)   Incident Detection (Video Processing) VisioPaD Citilog – AID TCP Server SYS V5.3R2E1   Incident Detection (Wrong Way Driver) Click 512 (500 series) (2014) TAPCO Device TAPCO Blink Link GovComm Traffic Vision K&K (Avigilon) Carmanah   Incident Detection (Over-Height Detection) WebRelay XML with SNMP   Managed Lanes Versilis Commander v1.5
